Understanding the New Source of Use (SoU) Data Feature on Flexview

The SoU Data availability on the Flexview Power Manager dashboard is a new and improved functionality now housed under the Analysis tab. This feature allows users—particularly Site and Energy Managers—to view energy data not just in general terms,but based on the specific source of power supply (e.g., grid or generator).

This guide walks you through how to locate and navigate the SoU data on your dashboard.

Navigating to the SoU Data

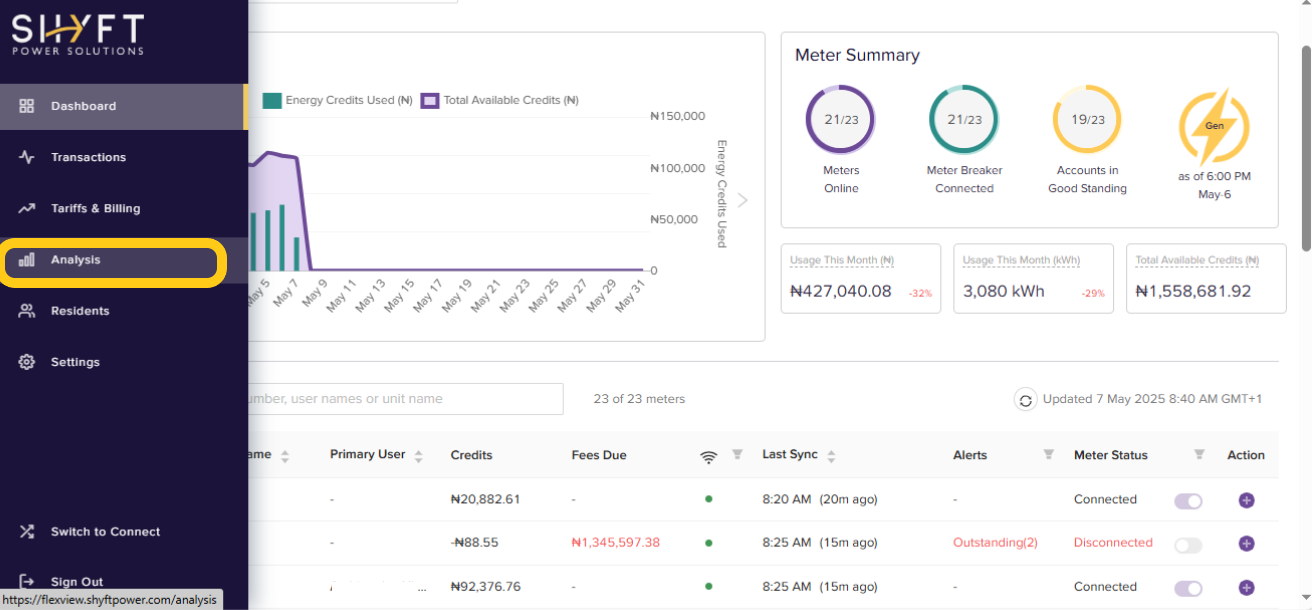

  1. From the main Flexview dashboard, click on the Analysis tab.

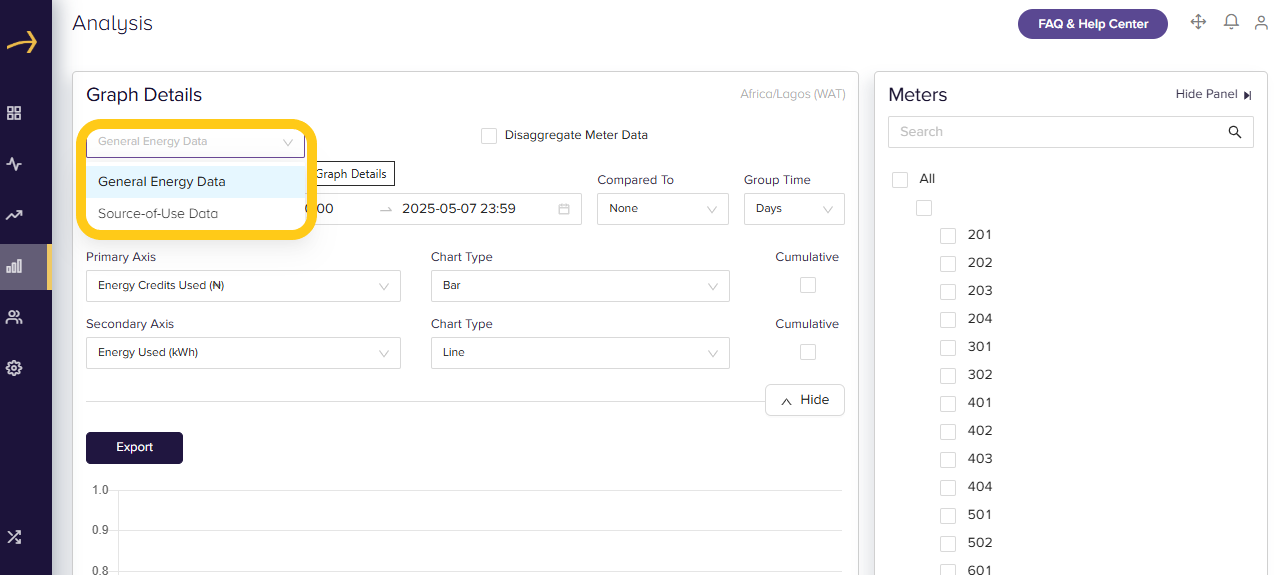

  2. Once in the Analysis session, you will now see a new drop-down menu that allows you to toggle between:

    • General Energy Data (the default and existing view)

    • Source of Use (SoU) Data (new feature)

📝 Note: What was previously shown in the Analysis tab is now categorized under General Energy Data. The SoU data is an additional and upgraded view, not a replacement.


Working with SoU Data

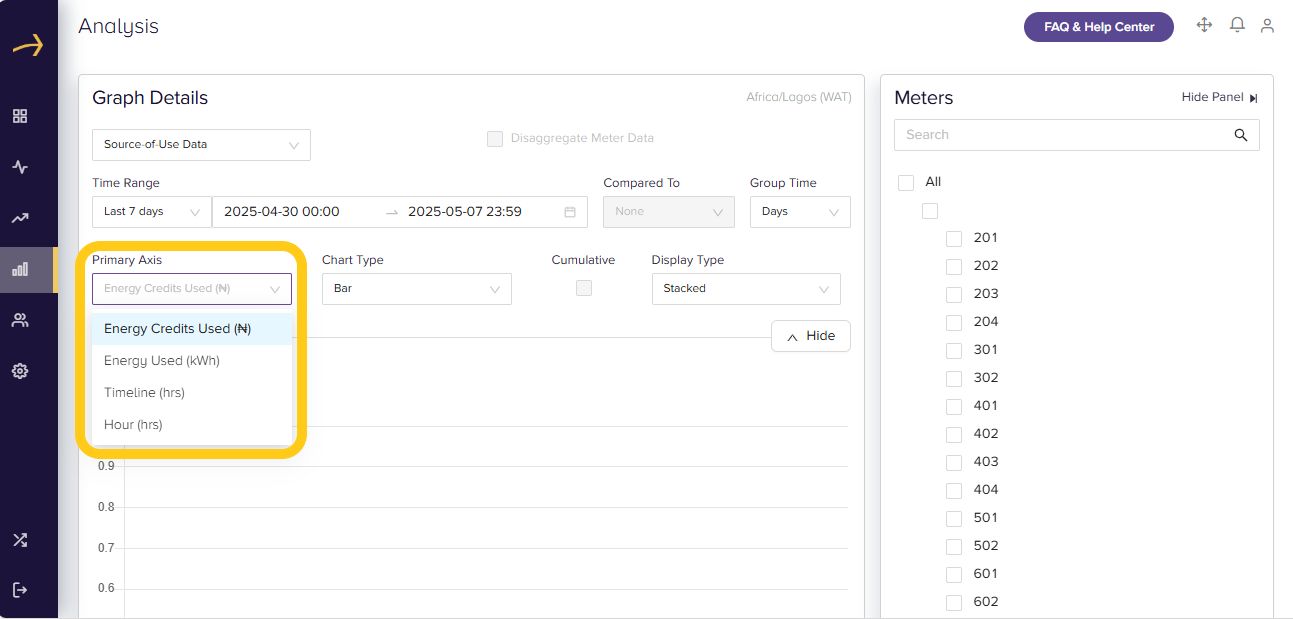

When you select Source of Use, you'll notice that the Secondary Axis is no longer available. You’ll instead use the Primary Axis to select from four data views:


1. Energy Credits Used (₦)

This metric shows the energy credits (₦) used as payment for the energy consumed from each power source (e.g., Grid, Generator).

  • Meter selection matters here – only meters selected will reflect in the graph or data.

  • If you want to see energy credit data across an entire site, ensure all meters at the site are selected.

  • Data will not display if meters from multiple sites are selected.
  • Graphs and tables here are similar in format to those under General Energy Data.

  • Display types available: Stacked or Clustered

  • Recommended chart type: Bar Chart

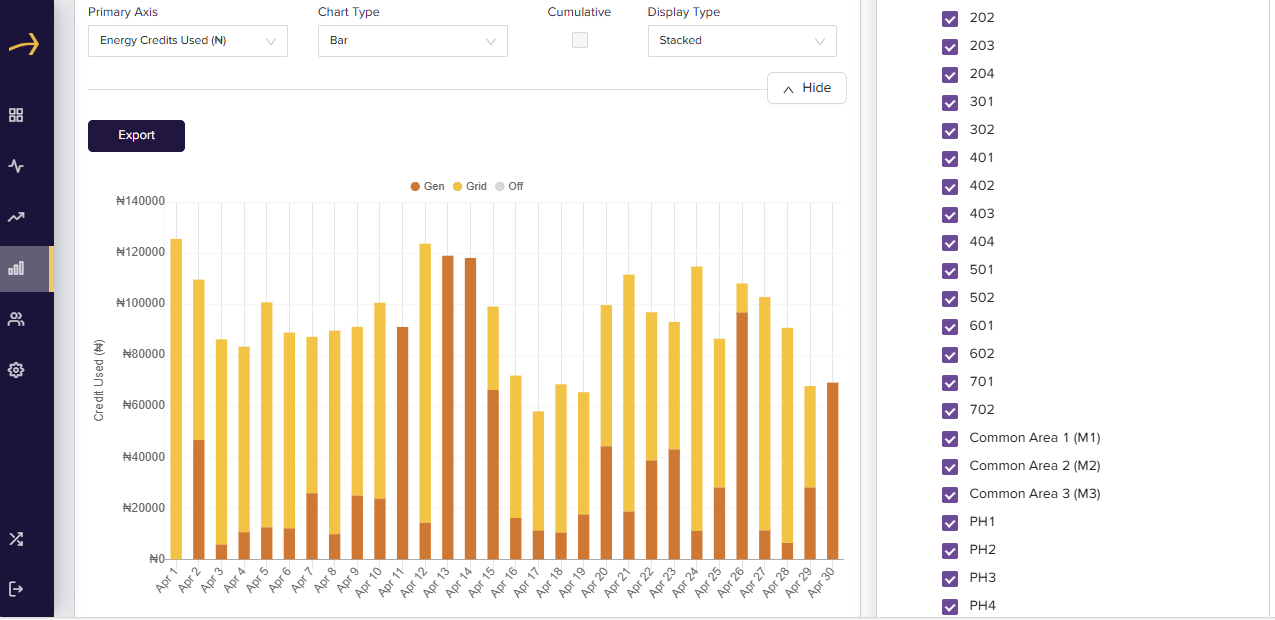

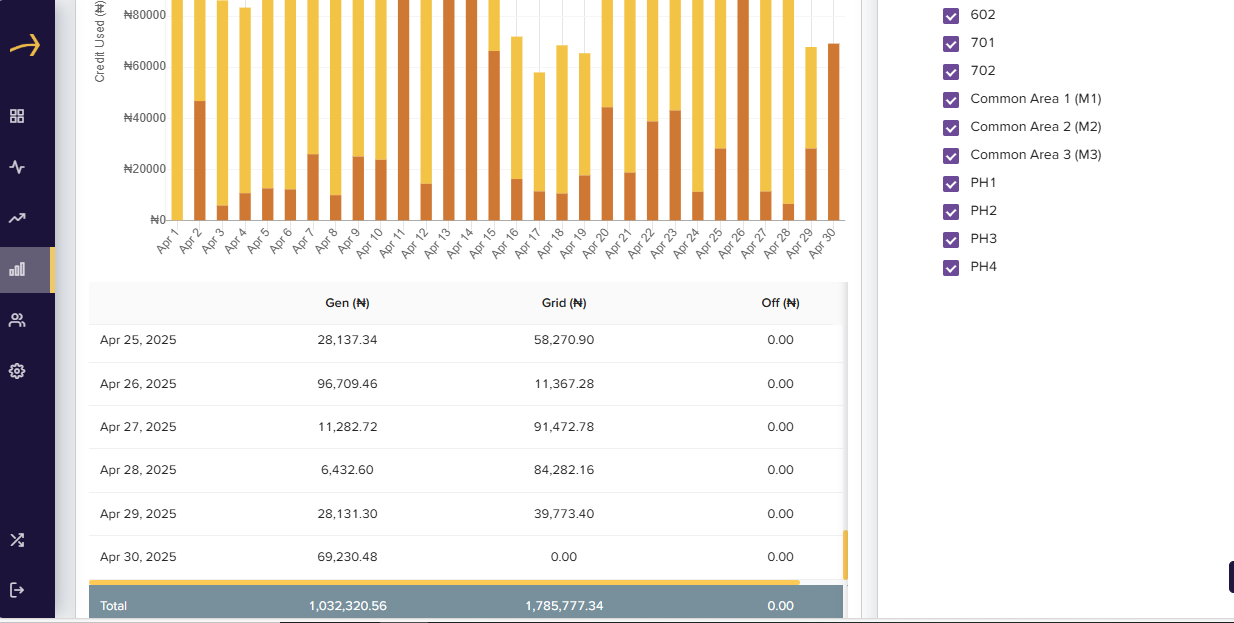

  • The image below displays a stacked bar chart showing the energy credits used in April, broken down by power source.


2. Energy Consumed (kWh)

This shows the actual energy consumed (kWh) per source of supply.

  • Like with energy credits, meter selection affects the data shown.

  • The more meters you select, the broader your view of consumption across the site.

  • Data will not display if meters from multiple sites are selected.

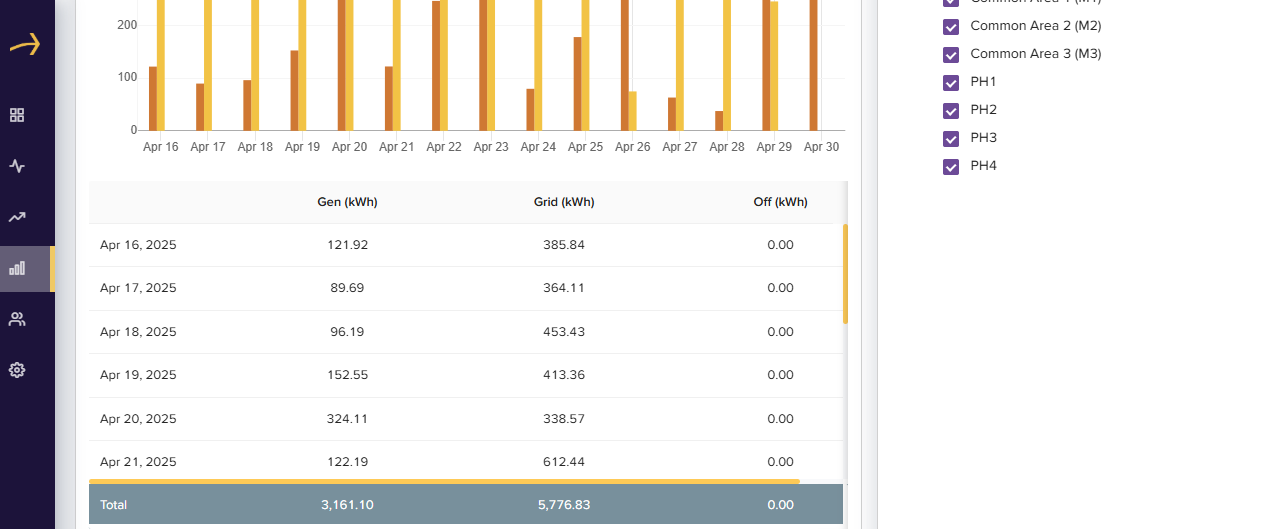

  • Graph and table formats remain consistent with the General Energy Data layout.

  • Display types available: Stacked or Clustered

  • Recommended chart type: Bar Chart

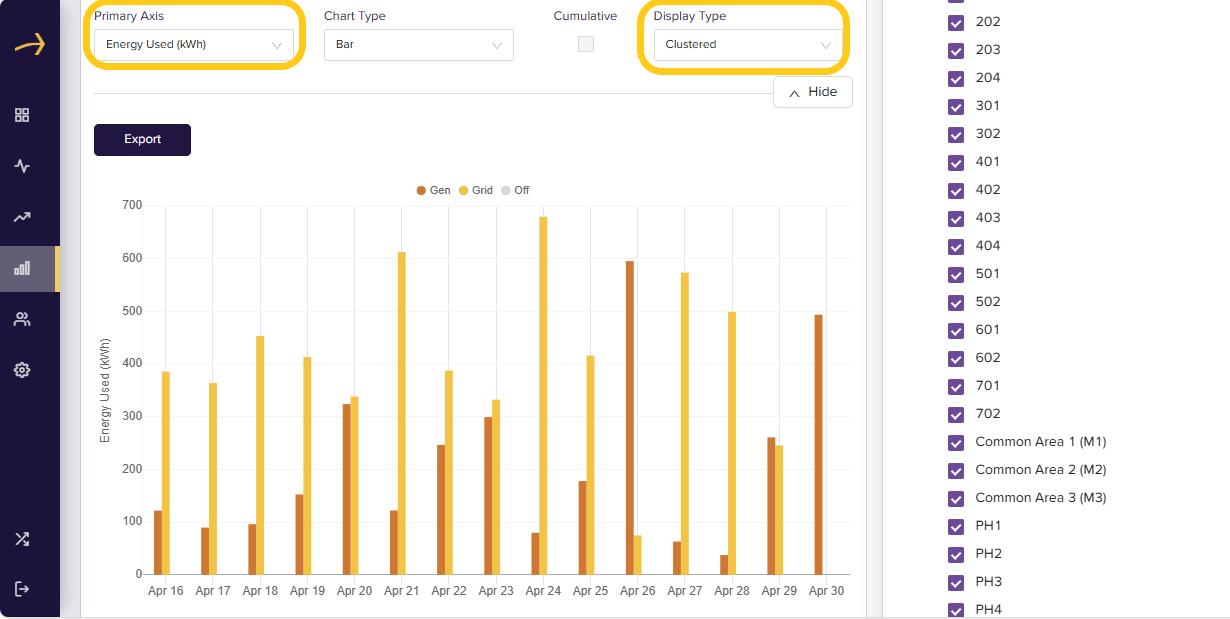

  • The image below displays a clustered bar chart showing the energy consumption in April, broken down by power source.

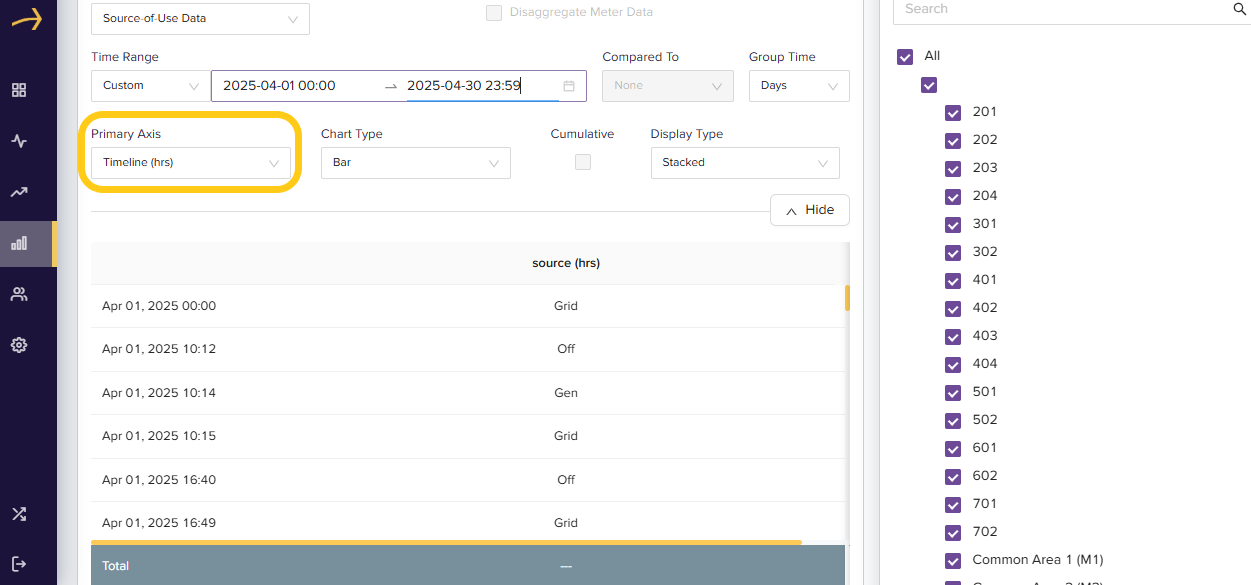

3. Timeline (Hrs)

This provides a time-series log of power source events (i.e., when a source came on or went off).

Important tips:

  • Under the Timeline view, only a table showing event logs is available — no graphs (chart/display types) are provided.

  • Unlike the previous metrics, the number of meters selected here does not impact the data shown. This is because power source events log are fixed per site.
  • Ensure you are selecting meters from the same site only. Data will not display if meters from multiple sites are selected.


4. Hours (Hrs)

This is a powerful new visual showing how many hours each power source supplied energy over selected time ranges—hourly, daily, weekly, or monthly.

Key notes:

  • Unlike the previous metrics, meter selection here does not affect the data shown. This is because run hours are calculated per site.

  • Best practice: Stick to a single cluster of meters per site. Do not mix meters from different sites when using this view.

  • Display types available: Stacked or Clustered

  • Recommended chart type: Bar Chart

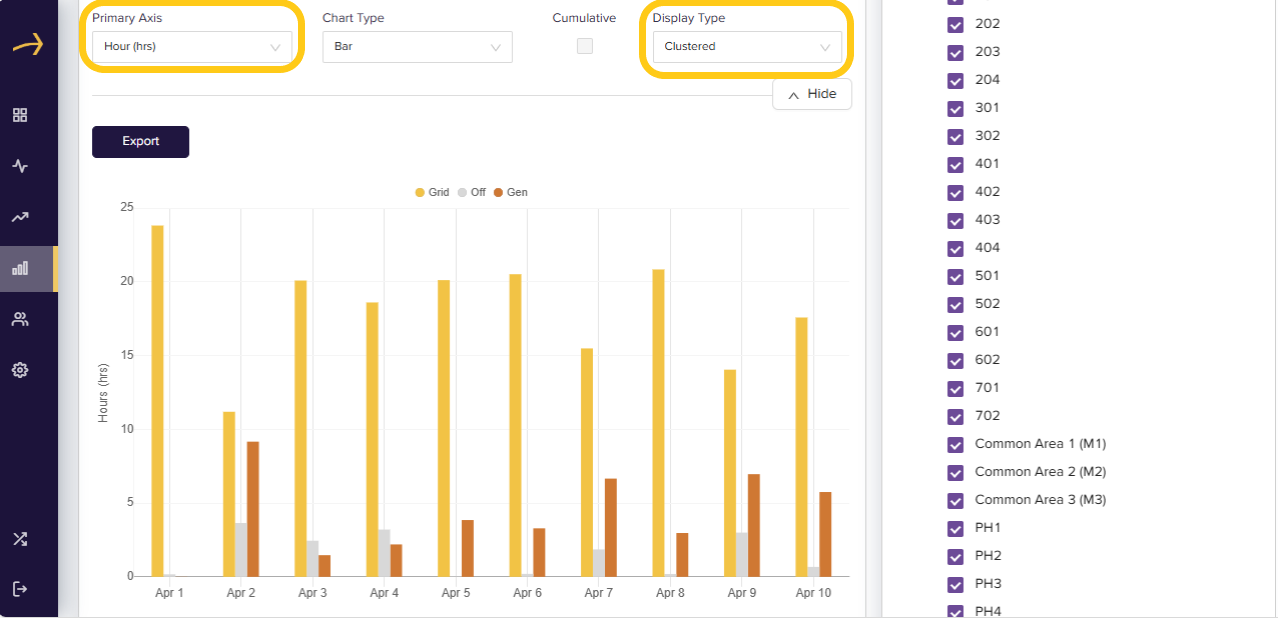

  • The image below displays a clustered bar chart illustrating the number of hours power was supplied from each source (grid and generator) within a 24-hour period, including any hours with no power supply.

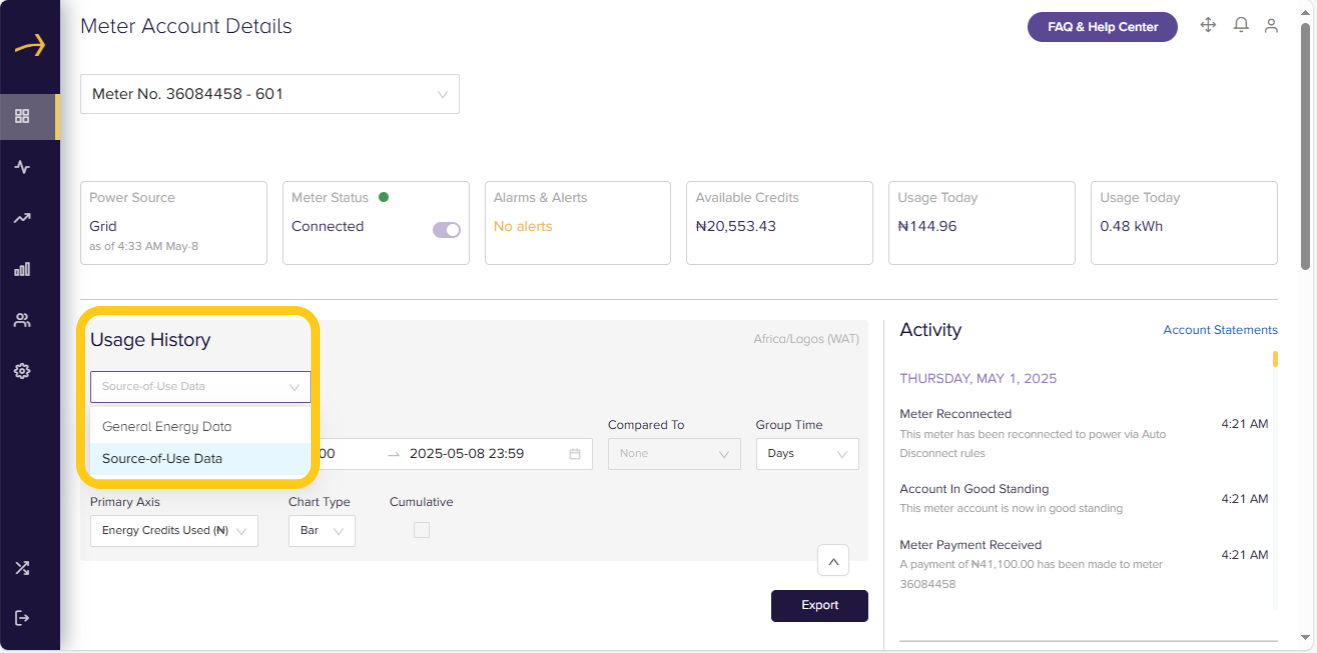

Viewing SoU Data from the Meter Details Page

In addition to the Analysis tab, SoU data (both energy and cost) is also available on the Meter Details page. This allows Power Managers to view source-specific consumption and credit usage directly within the context of individual meter activity.

Conclusion & Next Steps

The SoU data feature empowers estate, facility, and energy managers with greater transparency and accountability when managing multiple power sources. Whether you're auditing energy credits, reviewing generator usage, or defending diesel spend, this update equips you with sharper insights directly from your dashboard.

We recommend you:

  • Explore the new drop-down under the Analysis tab and Meter Details page.

  • Use the appropriate view based on your analysis goals.

If you have questions or require support navigating this feature, please reach out to our Customer Success Team. We're happy to help.
